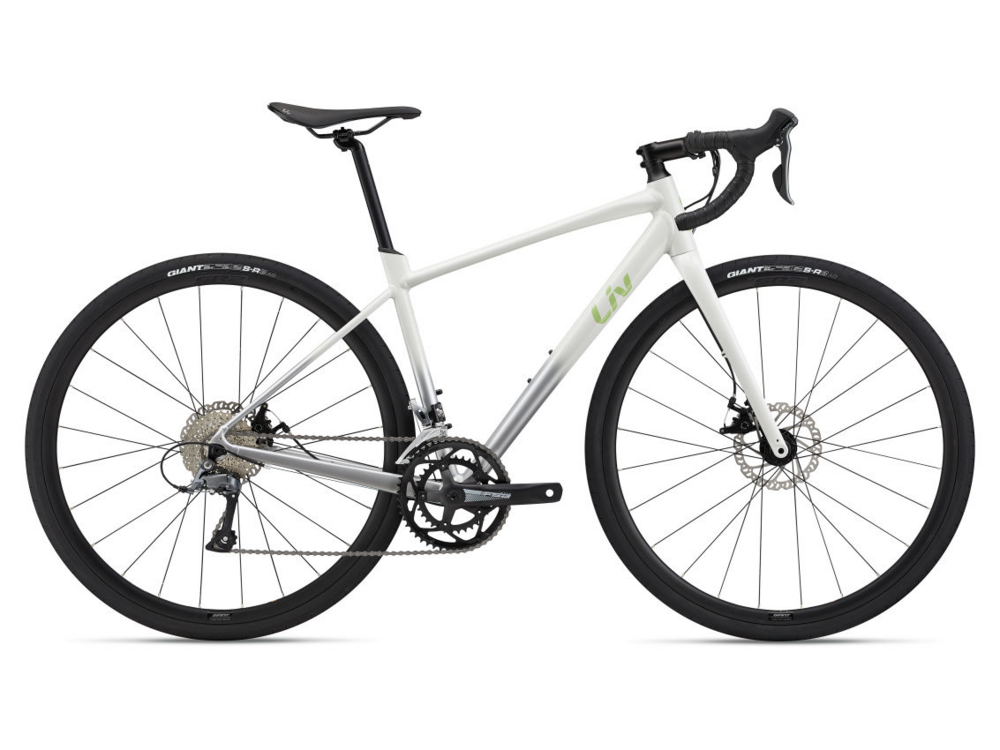

Liv Avail AR 4

Liv Avail AR 4
$1,150.00
Color: Snow Drift
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

WHETHER IT’S NAVIGATING ASPHALT OR VENTURING THROUGH AN UNPAVED SHORT CUT, THE AVAIL AR IS SMOOTH ON FLATS, SPRY ON CLIMBS AND CONFIDENT ON DESCENTS.

KEY PERFORMANCE FACTORS:

Comfort
The lightweight ALUXX frame features the latest women’s endurance geometry with an Advanced-Grade Composite fork and D-Fuse seatpost to diminish vibrations.

Control
The Avail AR comes with 32c tires that ride steady on-road and off, and is compatible with tires up to 38c (select models are tubeless). Maintain precise handling with the OverDrive steerer and powerful disc brakes.

Carrying capacity
This bike also accommodates a rack and fenders to keep you equipped on longer hauls.

TECHS & FEATURES

ALUXX ALUMINUM TECHNOLOGY
- This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

COMPACT ROAD DESIGN
- When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

D-FUSE SEATPOST
- The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

OVERDRIVE
- Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

TUBELESS SYSTEM
- Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

Sizes:
XSSML
ASEAT TUBE LENGTH (inch) 16.117.518.920.3
BSEAT TUBE ANGLE 74.5°74.5°74.0°74.0°
CTOP TUBE LENGTH (inch) 20.320.721.321.9
DHEAD TUBE LENGTH (inch) 4.65.46.27
EHEAD TUBE ANGLE 70.5°71.5°72.0°72.0°
FFORK RAKE (inch) 2.12.12.12.1
GTRAIL (inch) 2.72.42.32.3
HWHEELBASE (inch) 39.339.439.640.2
ICHAIN STAY LENGTH (inch) 16.616.616.616.6
JBOTTOM BRACKET DROP (inch) 3.13.13.13.1
KSTACK (inch) 21.222.122.923.7
LREACH (inch) 14.414.514.715.1
MSTAND OVER HEIGHT (inch) 26.827.92930.2
NHANDLEBAR WIDTH (inch) 1515.715.716.5
OSTEM LENGTH (inch) 2.83.13.53.5
PCRANK LENGTH (inch) 6.56.76.76.8
QWHEEL SIZE 700C700C700C700C
Sizes:
XS 5’0” to 5’4”
S 5’2” to 5’7”
M 5’5” to 5’9”
L 5’7” to 6’0”

Specs

Fork Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc
Hubs Giant S-R2 Disc wheelset
Rims Giant S-R2 Disc wheelset
Stem Giant Sport XXS:70mm, XS:70mm, S:80mm, M:90mm, L:90mm
Chain KMC Z83
Frame ALUXX-Grade Aluminum, 12x142mm thru-axle, disc
Tires Giant S-R3 AC, 700x32c
Brakes Tektro MD-C550 mechanical, Shimano rotors [F]160mm, [R]160mm
Saddle Liv Approach
Spokes Giant S-R2 Disc wheelset
Crankset FSA Tempo, 34/50 XXS:165mm, XS:165mm, S:170mm, M:170mm, L:172.5mm
Seatpost Giant D-Fuse, alloy XXS:350mm, XS:350mm, S:350mm, M:350mm, L:350mm
Shifters Shimano Claris
Handlebars Liv Connect, 31.8mm XXS:38cm, XS:38cm, S:40cm, M:40cm, L:42cm
Tape/Grips Liv All Condition
Brake Levers Shimano Claris
Bottom Bracket cartridge
Rear Derailleur Shimano Claris
Front Derailleur Shimano Claris
Cassette/Freewheel Shimano CS-HG50, 8-speed, 11x34
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Snow Drift / X-Small / 700c 4712878731721 2200030103
Snow Drift / Medium / 700c 4712878731745 2200030105
Snow Drift / Small / 700c 4712878731738 2200030104
Snow Drift / Large / 700c 4712878731752 2200030107
