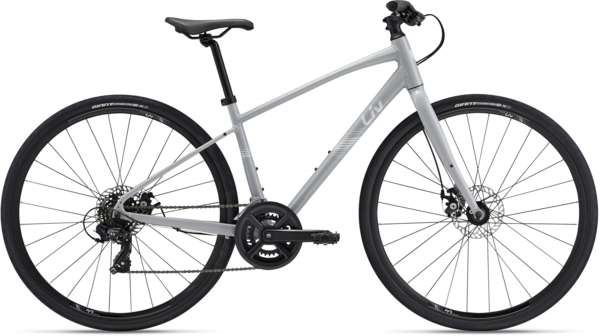

Liv Alight DD Disc 3
Details
The Alight DD Disc is redesigned with a fast and fresh look, and is equipped with touchpoints to maximize comfort, accessory mounts, and dependable components, making this a versatile flat-bar road bike perfect for commuting and keeping an active lifestyle.
Key Performance Factors
Versatility
Equipped with integrated mounts for fenders, a rear rack, and a kickstand, the Alight lets you customize your accessories so you can make room for all your essentials and stay clear of debris.
Comfort
Staying comfortable on your daily rides is a non-negotiable, so the Alight comes with shock-absorbing grips, a compliant D-Fuse seatpost, and a pressure-relieving saddle.
Control
The Alight’s powerful disc brakes work in dry or wet conditions, and with the increased fork clearance, you can install up to a 40c tire, which allows for greater traction.
| Frame Size | X-Small | Small | Medium | Large |
|---|---|---|---|---|
| Seat Tube Length (mm) | 370 | 420 | 460 | 500 |
| Seat Tube Angle | 73.5° | 73.5° | 73.0° | 73.0° |
| Top Tube Length (mm) | 535 | 550 | 570 | 590 |
| Head Tube Length (mm) | 130 | 150 | 160 | 175 |
| Head Tube Angle | 70.0° | 70.5° | 71.0° | 71.0° |
| Fork Rake (mm) | 50 | 50 | 50 | 50 |
| Trail (mm) | 78.2 | 74.8 | 71.4 | 71.4 |
| Wheelbase (mm) | 1044 | 1055 | 1065 | 1085 |
| Chain Stay Length (mm) | 445 | 445 | 445 | 445 |
| Bottom Bracket Drop (mm) | 62 | 62 | 62 | 62 |
| Stack (mm) | 554 | 575 | 587 | 601 |
| Reach (mm) | 371 | 380 | 391 | 406 |
| Stand Over Height (mm) | 591 | 590 | 591 | 587 |
| Handlebar Width (mm) | 600 | 600 | 640 | 640 |
| Stem Length (mm) | 80 | 80 | 90 | 100 |
| Crank Length (mm) | 165 | 165 | 170 | 170 |
| Wheel Size | 700C | 700C | 700C | 700C |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| X-Small | 148 - 163 | 4'10" - 5'4" |
| Small | 158 - 169 | 5'2" - 5'7" |
| Medium | 164 - 175 | 5'5" - 5'9" |
| Large | 170 - 183 | 5'7" - 6'0" |
Specs
| Frame | ALUXX-grade aluminum, disc |
|---|---|
| Fork | alloy/steel, disc |
| Rims | Giant GX Disc wheelset |
| Hubs | Giant alloy, QR |
| Spokes | Stainless |
| Tires | Giant S-X3, 700x38c |
| Bottom Bracket | Cartridge |
| Crankset | ProWheel TY-CY01, 30/46 XS: 165mm, S: 165mm, M: 170mm, L: 170mm |
| Shifters | Shimano Altus, 2x7 |
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano Tourney, RD-TY300 |
| Cassette/Freewheel | Shimano CS-HG200-7, 12x32 |
| Chain | KMC Z7 |
| Brakes | Tektro TKB-172 mechanical [F]160mm, [R]160mm |
| Brake Levers | Tektro mechanical |
| Handlebars | Giant Sport flat, 25.4mm, 20mm riser XS: 600mm, S: 600mm, M: 640mm, L: 640mm |
| Tape/Grips | Liv ErgoContact |
| Stem | Giant Sport, 25.4mm XS: 80mm, S: 80mm, M: 90mm, L: 100mm |
| Seatpost | Giant D-Fuse, alloy XS:300mm, S:300mm, M:300mm, L:350mm |
| Saddle | Liv ErgoMax |
| Pedals | Platform |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Good Gray / X-Small / 700c | 04712878946460 | 1002009123 |
| Good Gray / Small / 700c | 04712878946477 | 1002009124 |
| Good Gray / Medium / 700c | 04712878946484 | 1002009125 |
| Good Gray / Large / 700c | 04712878946491 | 1002009127 |
| Muscat Blanc / X-Small / 700c | 04712878946545 | 1002009223 |
| Muscat Blanc / Small / 700c | 04712878946552 | 1002009224 |
| Muscat Blanc / Medium / 700c | 04712878946569 | 1002009225 |
| Muscat Blanc / Large / 700c | 04712878946576 | 1002009227 |
